Banquet Hall Folding Partition Walls , Operable Partition Panels

Name: Banquet Hall Folding Partition Walls Operable Partition Panels
Brand: BANGE
Price: 1 USD

Wholesale Banquet Hall Folding Partition Walls , Operable Partition Panels from china suppliers

Brand Name : BANGE

Model Number : 65 mm folding partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 square meters

Price : US Dollars 78 - 118 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 15-20 days

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

System : Hanging system

Application : Hotel,banquet hall

Style : Sliding

Position : Interior

Material : MDF + Aluminum

Product name : Sound proof partitions

Thickness : 65 mm(2 9/16 inch)

Panel width : 500 mm--1220 mm

Feature : Sound proofing

Contact Now

Movable Partition Walls, Operable Partition Panels, Banquet Hall Folding Partition Walls

Finishing & Stacking

BUNGE folding partition walls are available in various decorative finishes. The panel surface will be as per the client’s requirement finished that is MDF, MICA Laminate and FABRIC, either in factory or by others at site.

Panels can be stacked in a variety of positions. Centre stacking and side stacking can be choose as per space available at site

Suspension System

The partition wall has 2 suspension modes including the single roller suspension and double roller suspension. Each suspension is different in stacking.

Banquet Hall Folding Partition Walls , Operable Partition Panels

Technical dedetails

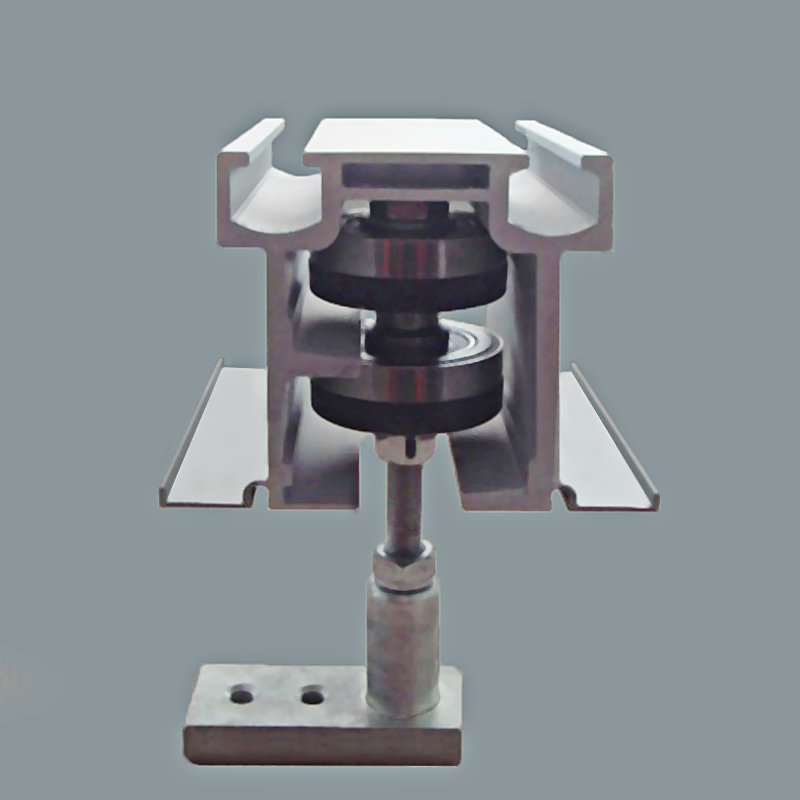

TRACK & TROLLEY

Each Panel shall be suspended on Extruded 6063 – T5 Anodized Aluminum Track, Steel Cold Ball Bearing Rollers / Trolley of material nylon wheel made with the base Material of POM 45 tempered steel , maintance free with multiple Balbearing. The individual element is adjustable in height without opening of the ceiling.

Retractable Pressure Seals
The panel once positioned will realize a sealed effect via retractable pressure seals. The seals can be easily controlled or locked by means of simple on-site operation, which means users can turn the waist-high operating handle to extract the pressure seals. The handle of partition wall rotate a locking bar inserted from the panel edge and the top and bottom seals can be simultaneously controlled. It is important that the soundproof pressure seals can be properly extended to achieve excellent sound insulation effect. Vinyl Seal of Butane Rubber will be used at top and bottom and as well as Closure Seals for the Operable wall system. Retractable seal drop will be 20 mm.

Rubber Sealing Strip

The rubber sealing strip is used to seal the gap between the sliding panel top and the track as well as the gap between the sliding panel bottom and the floor. It is a widespread and effective acoustic barrier and control noise propagation from one side to other side of movable wall which will give silence ambiance.

Operation

There will be a 20-25mm gap between the top of panels and the bottom of the head track when the wall panels are moved. Similarly, the gap also exists between the bottom of panels and the floor. Means Retractable seal drop will be 20 mm – 25 mm .

The pressure seals are operated by Retractable Mechanism to move Top and Bottom Seal Manually Operated by a Handle inserted in the Panel Stile, Turning the Handle through 45 degrees shall simultaneously Extend or Retract the Top and Bottom Seals through steel and Spring Mechanism which shall firmly hold the Seals in the Retracted or Extended mode By installing the retractable pressure seals on the top and bottom of panels, excellent sound insulation effect is achieved when the panels are positioned. The overall sound insulation effect can be achieved via the extension sleeve on the last panel and the tight sealing of the top and bottom seals.
