High Quality Movable Modern Folding Soundproof Partitions for Conference Room
Features:
1> The Partition Board is made from high density s/s frame, special made rubber, excellent sound
insulation cotton and finish board etc. the finish board is flat and hard;
2> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the
board can be stored in may different ways;
3> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the
same plane with the ceiling decoration. It won’t affect the whole decoration style;
4> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;
5> The operation ways is much easier, it’s better than the old ways which was use spring before;
Bunge Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
2,FIXING

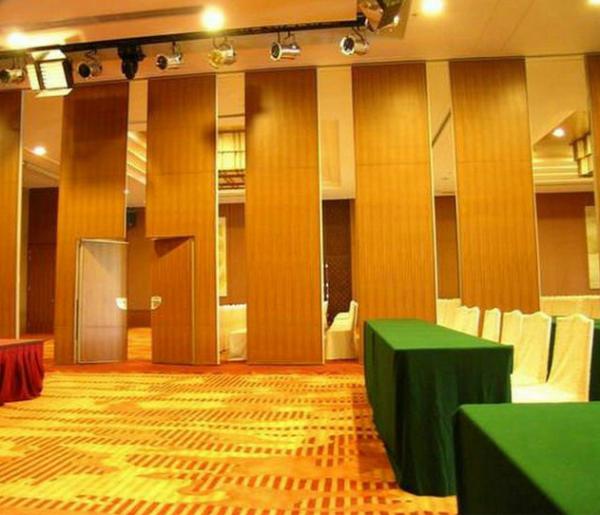

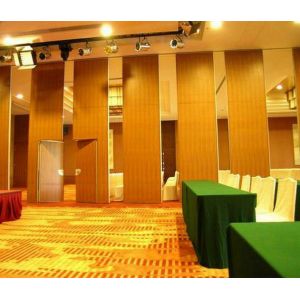

Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
